Item Description -

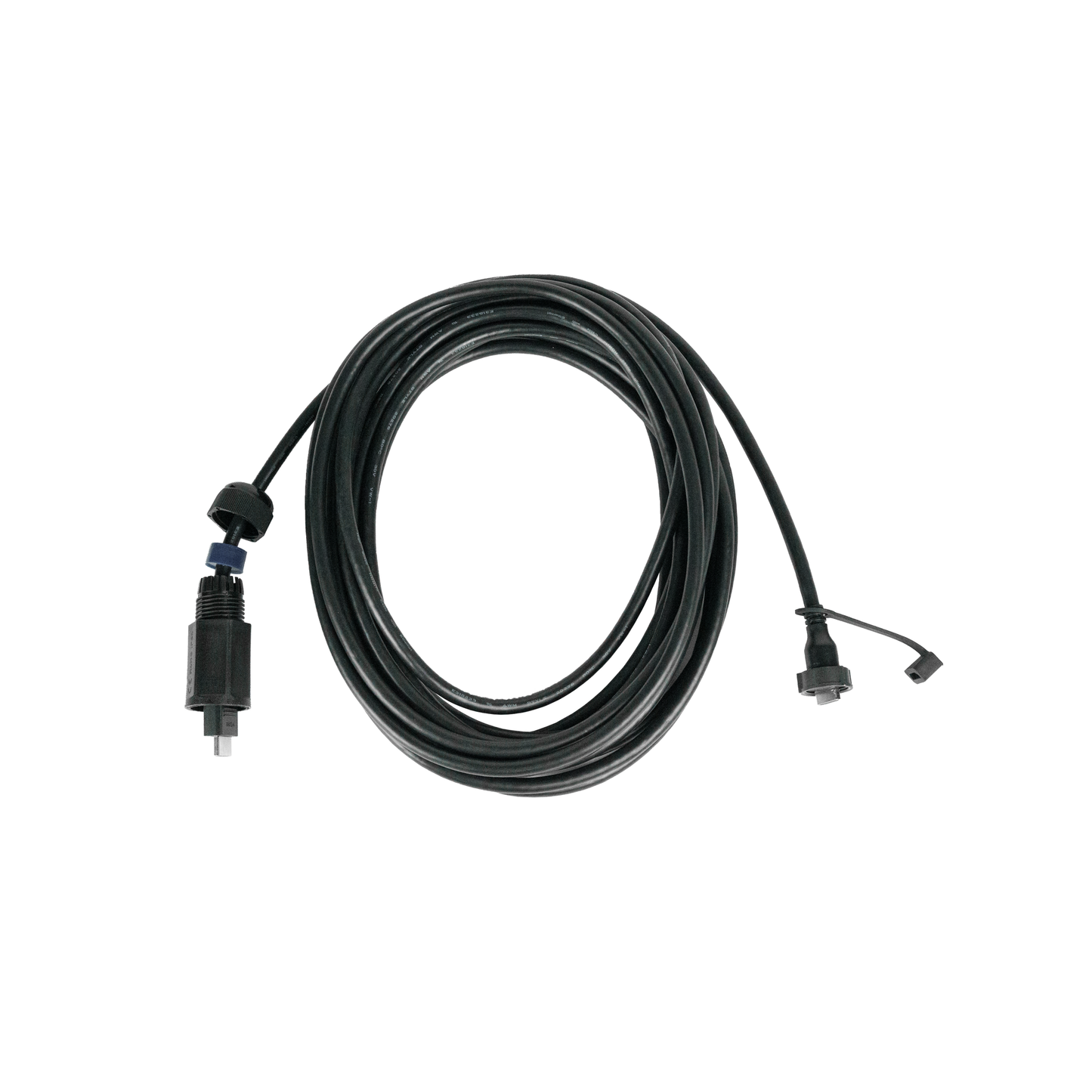

The HDMI Link cable for NBTmarine MFDs is universal for all current models.
Specifications -
IP67 Rated waterproof connections on both ends.
8 Meters or 24' of cable fits almost all LINK setups from console to bow.
Features Active HDMI Technology carrying 5v DC.
WARNINGS AND RECOMMENDATIONS -
These Special 19 Pin NBT HDMI LINK Cables are very sensitive (similar to your LVS Cable)
It is best to limit the amount of un plug and re plug applications.
Important to only unplug NBT HDMI LINK Cables from MFDs when units are NOT RECIVING ANY voltage from battery supplies on board the vessel. (ZERO POWER MUST BE ON)
Keep Cable ends and connections dry and out of the weather when not in use to insure proper connectivity.
Installation TIPs -
The Large 3 Piece cable end connects to your HDMI OUT port on your compatible graph/unit. Make sure to Plug the HDMI cable into the unit, followed by the large collar, then blue seal, then the second collar.
The Small cable end connects to your NBTmarine MFD in either HDMI Port located on the bottom back of the MFD.
NBTmarine Cables are not covered under the warranty of the unit under any circumstances. If you receive a NEW unit and claim its not working due to cable, please contact NBTwarranty@gmail.com to start the process.
